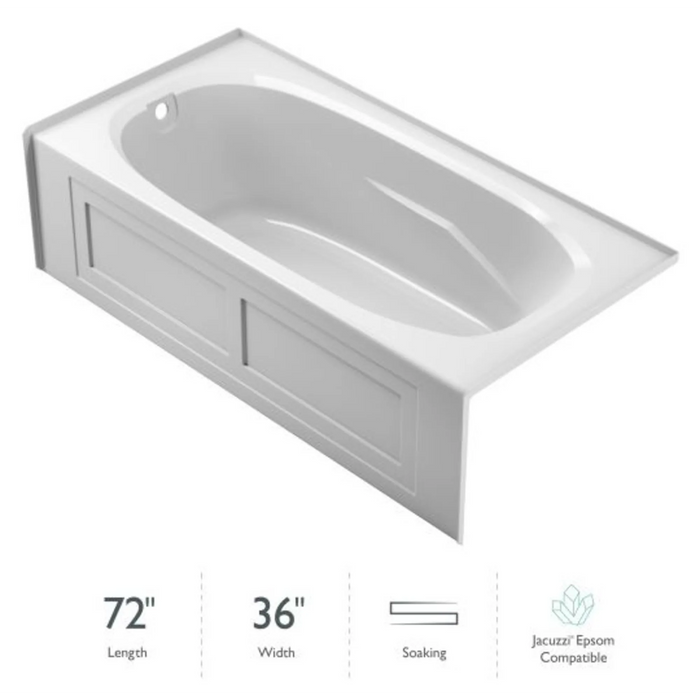

Jacuzzi Signature 72" Acrylic Soaking Bathtub for Alcove Installation with Reversible Drain - White

Product Features:

• Durable high-gloss acrylic material
• Full, deep soaking tub with 33° lumbar slope contoured backrest
• The combination of heat and water relaxes muscles and calms the senses
• Exclusive Tru-Level pre-leveled base for ease of installation
• Limited lifetime manufacturer's warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.

Jacuzzi Technology:

• Tru-Level Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
• Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.

Product Specifications:

• Overall Height: 20-3/4" (measured from the top of tub rim to the bottom of basin)
• Overall Width: 36" (measured from back most to front most point on outer rim)
• Overall Length: 72" (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 22" (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 45" (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 27-7/10" (back to front measurement of the top of basin walls)
• Basin Length (Top): 57-2/5" (right to left measurement of the top of basin walls)
• Water Depth: 13-3/5" (depth of water at tub's maximum capacity)
• Maximum Water Capacity: 78 gallons
• Drain Location: Reversible
• Operating Gallons: 78 gallons
• Product Weight: 95 lbs.

Dimensions and Measurements:

• Basin Depth: 18 in.
• Capacity (Gallons): 78 gallons
• Height: 20.75 in.
• Length: 72 in.
• Nominal Length: 72 in.
• Nominal Tub Length / Width: 72 in. x 36 in.
• Overflow Height: 14.85 in.
• Water Depth: 13.6 in.
• Width: 36 in.

Included Components:

• Drain Assembly Included: No
• Faucet Included: No
• Light Included: No
• Tile Flange: Yes

Characteristics and Features:

• Apron Front: Yes
• Faucet Holes: 0
• Installation Type: Three Wall Alcove, Farmhouse
• Material: Acrylic
• Number Of Bathers: 1
• Overflow: Yes
• Self Leveling Base: Yes
• Slip Resistant: Yes
• Soaking: Yes
• Sound Dampening: No
• Theme: Modern
• Tub Shape: Rectangular

Manufacturer Technology:

• Experience: Soaking

Warranty and Product Information:

• ADA: No
• Collection: Signature
• Country Of Origin: USA
• Lead Leaching Certified NSF/ANSI 61: N/A (Regulation does not apply)
• Made in America: Yes
• Manufacturer Warranty: 1 Year Limited

Additional Information:

Specification Sheet

Owners Manual

Installation Sheet

Warranty
